Unordinary gears Inkscape's extension

Сообщение Nick »

We've made a new extension for creating unordinary gears such those are in the video:
https://www.youtube.com/watch?v=WYcqJ5HdxA4

Usage

1. Draw the first arbitrary gear.
2. Open Extensions -> Render -> Unordinary gears
3. Fill in teeth number for first and second gear. (This numbers are relative to each other, so instead of 14:28 you can enter 1:2.)
4. Enter number of copies. The bigger this number the smoother will be the gear. For the preview 50 copies will be enough, for the final render it could be about 360.
5. Enter the distance between the centers of the gears.

Press apply :)

So you should get something like this:

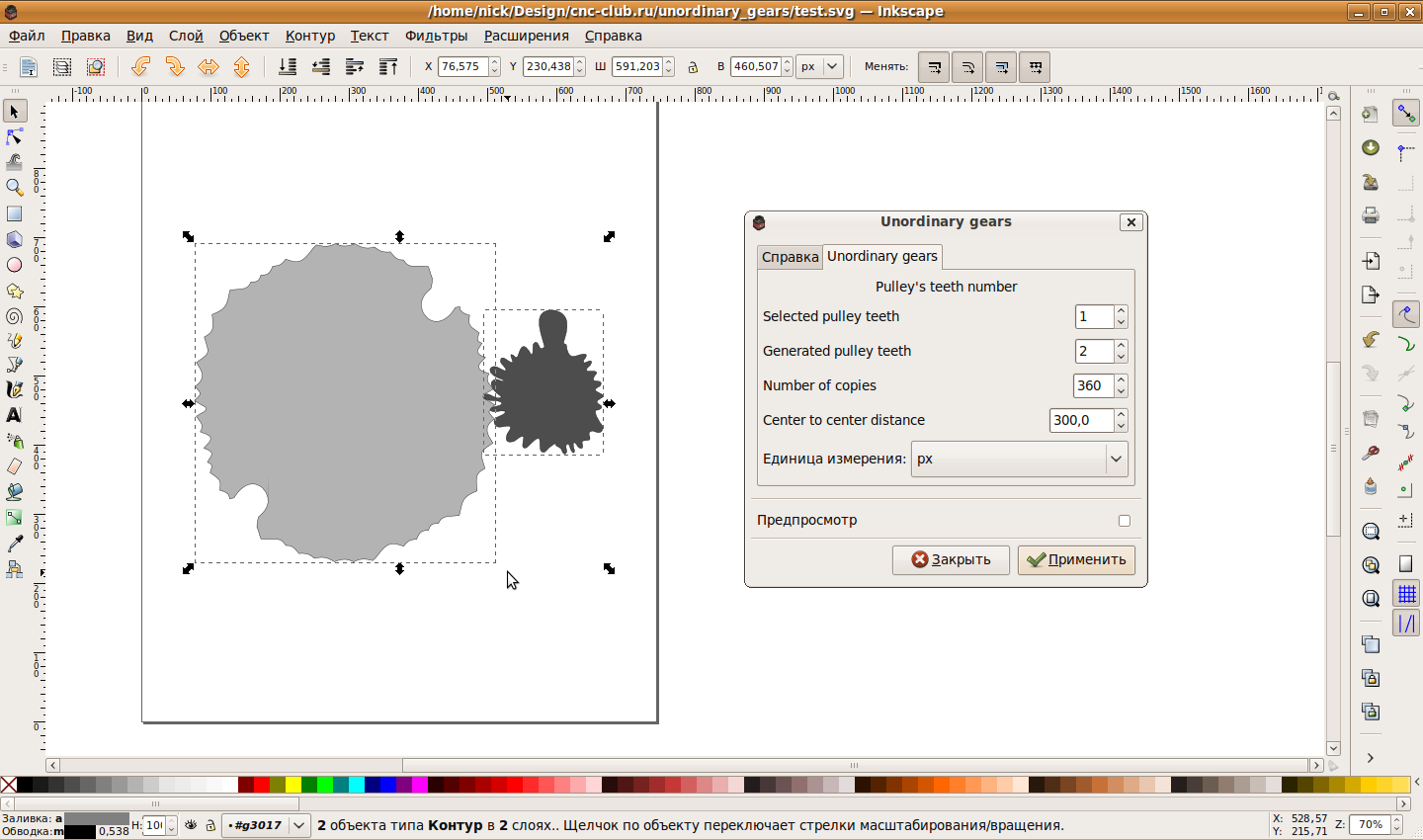

cnc unordinary gears.png (16067 просмотров) <a class='original' href='./download/file.php?id=1085&sid=edc51ef613fcad57490ca1b34e053d40&mode=view' target=_blank>Загрузить оригинал (588.34 КБ)</a>
Then enter into created group (double click on it), select all paths Ctrl+A and make boolean add Ctrl+Shift+"+":

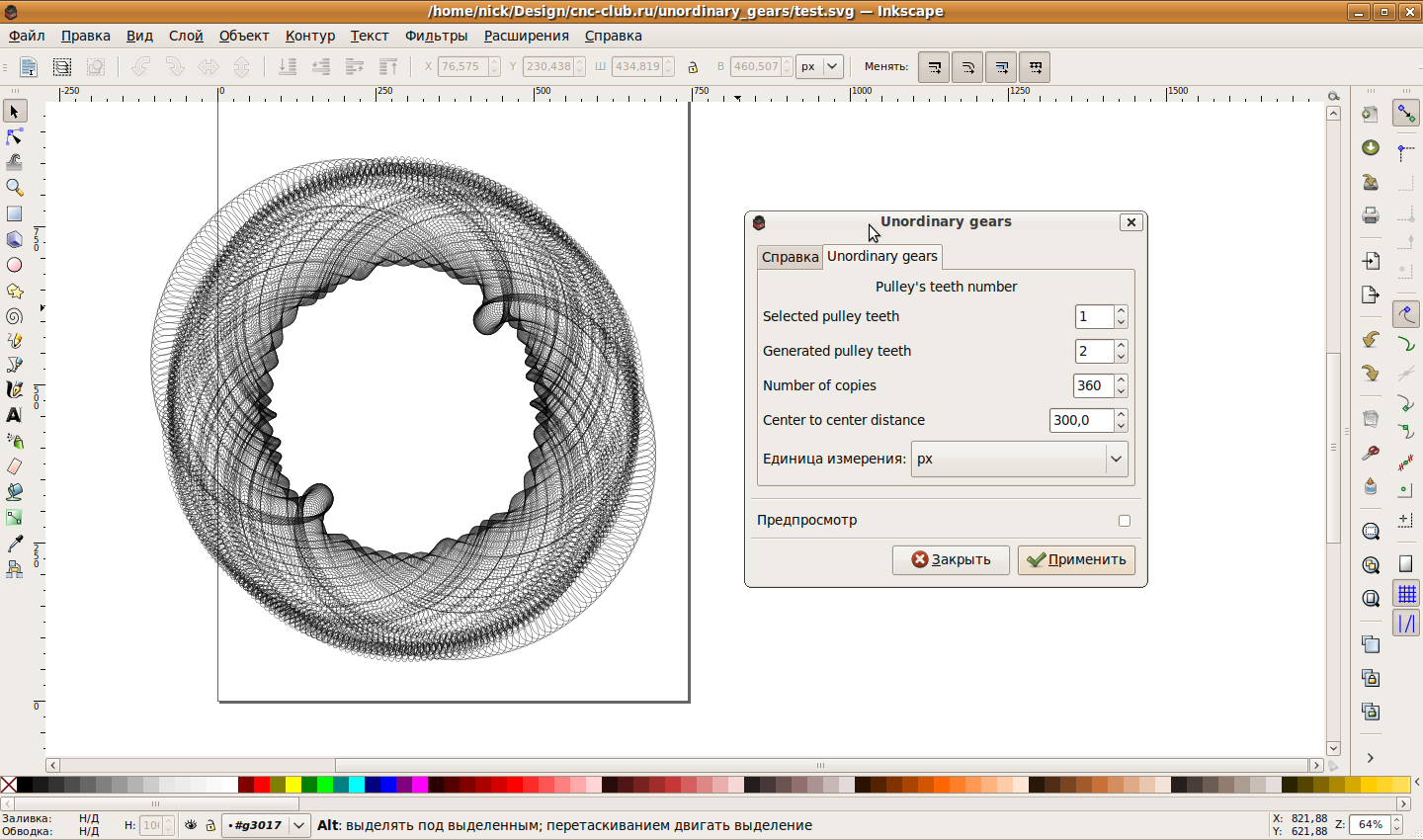

cnc unordinary gears creation.png (16067 просмотров) <a class='original' href='./download/file.php?id=1086&sid=edc51ef613fcad57490ca1b34e053d40&mode=view' target=_blank>Загрузить оригинал (160.06 КБ)</a>
Now break path apart Ctrl+Shift+K and delete everything except the inner path:

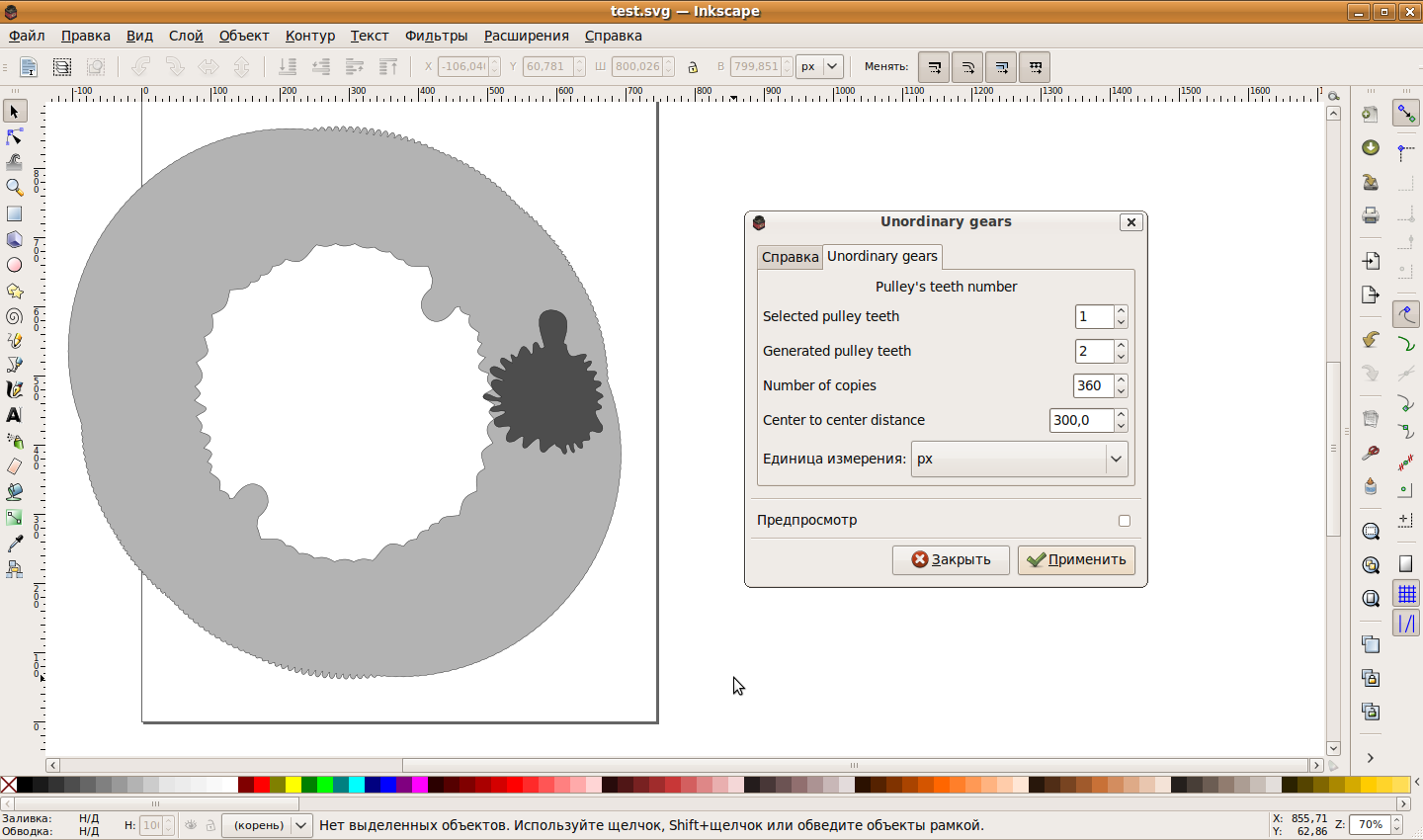

cnc unordinary gears extension.png (16067 просмотров) <a class='original' href='./download/file.php?id=1087&sid=edc51ef613fcad57490ca1b34e053d40&mode=view' target=_blank>Загрузить оригинал (152.11 КБ)</a>
Your extraordinary gear is ready :hehehe:!

You can make it a little smoother, go to node editing mode F2 select all nodes Ctrl+A and make all segments straight (a button at the node editing menu).

Install

Windows

Unpack and copy all the files to the following directory Program Files\Inkscape\share\extensions\ and restart Inkscape.

Linux

Unpack and copy all the files to the following directory /usr/share/inkscape/extensions/ and restart Inkscape.

Latest version

unordinary_gears.tar.gz
(3.86 КБ) 2176 скачиваний
Аватара пользователя
Nick
Мастер
Сообщения: 22735
Зарегистрирован: 23 ноя 2009, 16:45
Репутация: 1693
Заслуга: Developer
Откуда: Gatchina, Saint-Petersburg distr., Russia
Контактная информация:

Re: Unordinary gears Inkscape's extension

Сообщение Nick »

You can easily create gear for "gear" made of several bearings. Just draw first gear that looks like several circles. And create unordinary gear for it.
Вложения
Gear made of bearings (16066 просмотров) <a class='original' href='./download/file.php?id=1089&sid=edc51ef613fcad57490ca1b34e053d40&mode=view' target=_blank>Загрузить оригинал (29.82 КБ)</a>
Gear made of bearings
rray
Новичок
Сообщения: 15
Зарегистрирован: 30 дек 2010, 17:50
Репутация: 0
Контактная информация:

Re: Unordinary gears Inkscape's extension

Сообщение rray »

Just installed and check checked live preview
Вложения

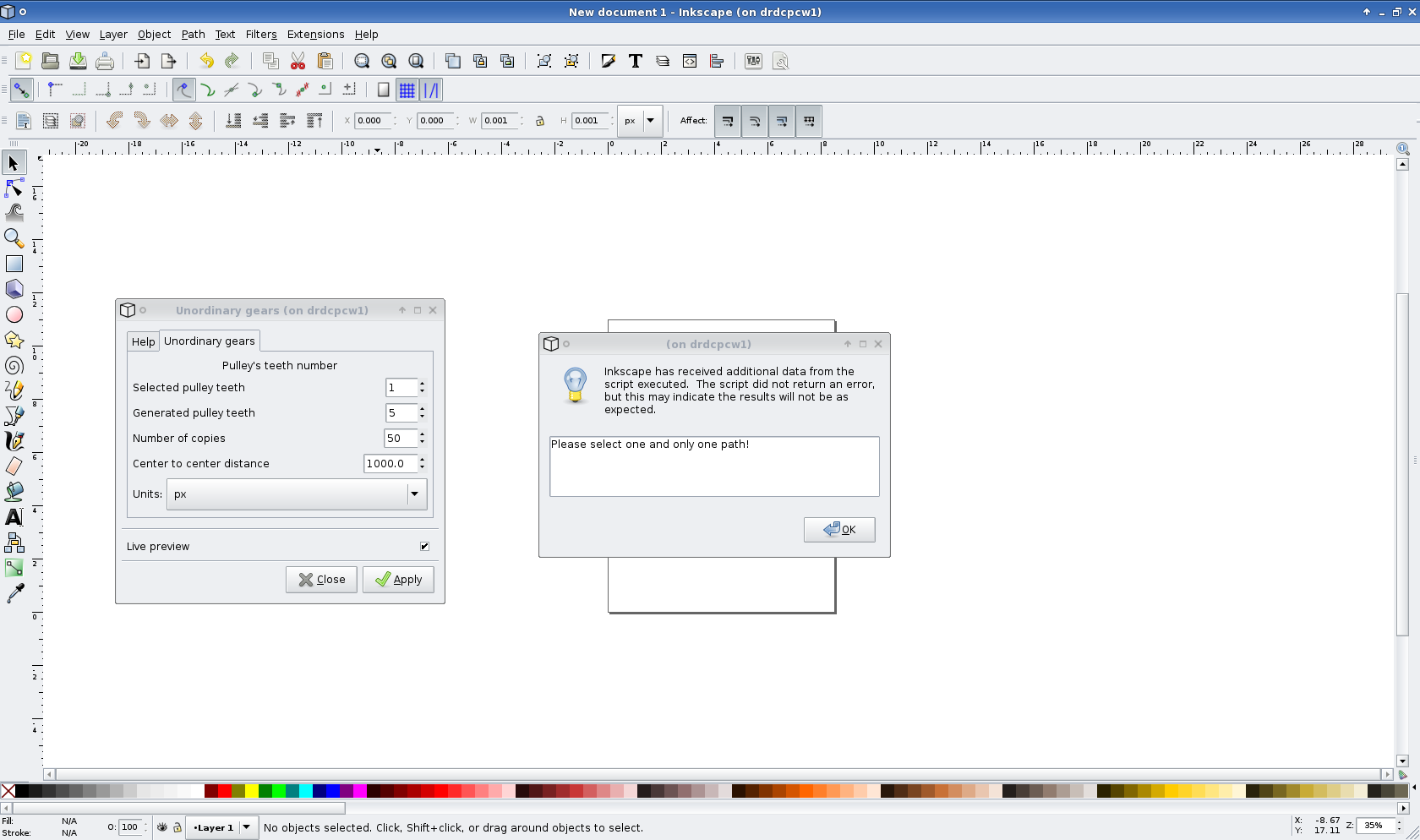

snapshot1.png (16048 просмотров) <a class='original' href='./download/file.php?id=1115&sid=edc51ef613fcad57490ca1b34e053d40&mode=view' target=_blank>Загрузить оригинал (133.16 КБ)</a>
Аватара пользователя
Nick
Мастер
Сообщения: 22735
Зарегистрирован: 23 ноя 2009, 16:45
Репутация: 1693
Заслуга: Developer
Откуда: Gatchina, Saint-Petersburg distr., Russia
Контактная информация:

Re: Unordinary gears Inkscape's extension

Сообщение Nick »

You should do exactly what it says.
Select only one path :).

I've not tested that Preveiw thing, and added this option to make possible making changes to the drawing while extension's dialog is opened.

So better do not touch it :). Just create arbitrary path that will be used as a first gear, select it and make corresponding gear for your path.

I've got to write a bug report/wish to Inkscape's developers to make able changing the scene without Preview field...
~suv

Re: Unordinary gears Inkscape's extension

Сообщение ~suv »

root писал(а):I've got to write a bug report/wish to Inkscape's developers to make able changing the scene without Preview field...
See Bug #649441 in Inkscape: “Extension dialogs shouldn't default to modal

I have been using the second version of the patch for quite some time with builds from Inkscape trunk, without noticing any regressions. Note though that most extensions that ship with Inkscape have the 'Preview' option set for the extension dialog. The extension 'Text > Replace font…' is one of the few exceptions.
Гость

Re: Unordinary gears Inkscape's extension

Сообщение Гость »

I have been playing with unordinary gears and wanted to see if there is a way to make a primary gear shape for the outer gear then make some small gears to fit inside. I have not yet been able to make any usable gears from the plugin yet but am still working on it. Any suggestions or hits would be appreciated.

Regards
Andrew
alhaddar
Новичок
Сообщения: 4
Зарегистрирован: 03 июл 2014, 02:06
Репутация: 0
Контактная информация:

Re: Unordinary gears Inkscape's extension

Сообщение alhaddar »

hi

can make GT2 5M Timing Pulley for Inkscape's extension

thsnks
Аватара пользователя
Nick
Мастер
Сообщения: 22735
Зарегистрирован: 23 ноя 2009, 16:45
Репутация: 1693
Заслуга: Developer
Откуда: Gatchina, Saint-Petersburg distr., Russia
Контактная информация:

Re: Unordinary gears Inkscape's extension

Сообщение Nick »

I'm not sure about that. But if you have profile you can make a pulley manually.
Just draw one tooth and then put aside center of rotation and make necessary amount of teeth.
Ответить
